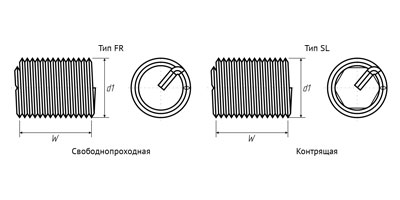

d x P, мм | K x d, мм | L, мм | W, мм | d1, мм | B, мм | t3, мм | FixCoil Classic | FixCoil Plus *** | ||
---|---|---|---|---|---|---|---|---|---|---|
FR | SL | FR | SL | |||||||
M2X0,40 | 1d | 2,0 | 2,9 | 2,6-2,8 | 2,1 | 1,8 | FR011 | SL011 | FRP011 | SLP011 |
1,5d | 3,0 | 4,9 | 2,8 | FR012 | SL012 | FRP012 | SLP012 | |||
2d | 4,0 | 6,9 | 3,8 | FR013 | SL013 | FRP013 | SLP013 | |||
2,5d | 5,0 | 8,9 | 4,8 | FR014 | SL014 | FRP014 | SLP014 | |||
3d | 6,0 | 10,9 | 5,8 | FR015 | SL015 | FRP015 | SLP015 | |||
M2,5X0,45 | 1d | 2,5 | 3,5 | 3,3-3,5 | 2,6 | 2,3 | FR021 | SL021 | FRP021 | SLP021 |
1,5d | 3,75 | 5,9 | 3,5 | FR022 | SL022 | FRP022 | SLP022 | |||
2d | 5,0 | 8,1 | 4,8 | FR023 | SL023 | FRP023 | SLP023 | |||
2,5d | 6,25 | 10,5 | 6,0 | FR024 | SL024 | FRP024 | SLP024 | |||
3d | 7,5 | 12,9 | 7,3 | FR025 | SL025 | FRP025 | SLP025 | |||
M3X0,50 | 1d | 3,0 | 3,9 | 3,8-4,0 | 3,2 | 2,7 | FR031 | SL031 | FRP031 | SLP031 |
1,5d | 4,5 | 6,3 | 4,2 | FR032 | SL032 | FRP032 | SLP032 | |||
2d | 6,0 | 8,7 | 5,7 | FR033 | SL033 | FRP033 | SLP033 | |||
2,5d | 7,5 | 11,1 | 7,2 | FR034 | SL034 | FRP034 | SLP034 | |||
3d | 9,0 | 13,5 | 8,7 | FR035 | SL035 | FRP035 | SLP035 | |||
M3,5X0,60 | 1d | 3,5 | 3,7 | 4,42-4,60 | 3,7 | 3,2 | FR041 | SL041 | FRP041 | SLP041 |
1,5d | 5,25 | 6,3 | 5,0 | FR042 | SL042 | FRP042 | SLP042 | |||
2d | 7,0 | 8,7 | 6,7 | FR043 | SL043 | FRP043 | SLP043 | |||
2,5d | 8,75 | 11,2 | 8,5 | FR044 | SL044 | FRP044 | SLP044 | |||
3d | 10,5 | 13,3 | 10,2 | FR045 | SL045 | FRP045 | SLP045 | |||
M4X0,70 | 1d | 4,0 | 3,7 | 5,05-5,25 | 4,2 | 3,6 | FR051 | SL051 | FRP051 | SLP051 |
1,5d | 6,0 | 6,1 | 5,6 | FR052 | SL052 | FRP052 | SLP052 | |||
2d | 8,0 | 8,4 | 7,6 | FR053 | SL053 | FRP053 | SLP053 | |||
2,5d | 10,0 | 10,9 | 9,6 | FR054 | SL054 | FRP054 | SLP054 | |||
3d | 12,0 | 13,2 | 11,6 | FR045 | SL055 | FRP055 | SLP055 | |||
M5X0,80 | 1d | 5,0 | 4,3 | 6,35-6,6 | 5,2 | 4,6 | FR061 | SL061 | FRP061 | SLP061 |
1,5d | 7,5 | 6,9 | 7,1 | FR062 | SL062 | FRP062 | SLP062 | |||
2d | 10,0 | 9,7 | 9,6 | FR063 | SL063 | FRP063 | SLP063 | |||
2,5d | 12,5 | 12,3 | 12,1 | FR064 | SL064 | FRP064 | SLP064 | |||
3d | 15,0 | 14,8 | 14,6 | FR065 | SL065 | FRP065 | SLP065 | |||
M6X1,00 | 1d | 6,0 | 4,2 | 7,6-7,85 | 6,3 | 5,5 | FR071 | SL071 | FRP071 | SLP071 |
1,5d | 9,0 | 6,9 | 8,5 | FR072 | SL072 | FRP072 | SLP072 | |||
2d | 12,0 | 9,6 | 11,5 | FR073 | SL073 | FRP073 | SLP073 | |||
2,5d | 15,0 | 12,3 | 14,5 | FR074 | SL074 | FRP074 | SLP074 | |||
3d | 18,0 | 14,6 | 17,5 | FR075 | SL075 | FRP075 | SLP075 | |||
M7X1,00 | 1d | 7,0 | 5,3 | 8,65-8,9 | 7,3 | 5,5 | FR081 | SL081 | FRP081 | SLP081 |
1,5d | 10,5 | 8,2 | 10,0 | FR082 | SL082 | FRP082 | SLP082 | |||
2d | 14,0 | 11,1 | 13,5 | FR083 | SL083 | FRP083 | SLP083 | |||
2,5d | 17,5 | 14,3 | 17,0 | FR084 | SL084 | FRP084 | SLP084 | |||
3d | 21,0 | 17,4 | 20,5 | FR085 | SL085 | FRP085 | SLP085 | |||
M8X1,25 | 1d | 8,0 | 4,7 | 9,85-10,1 | 8,4 | 7,4 | FR091 | SL091 | FRP091 | SLP091 |
1,5d | 12,0 | 7,4 | 11,4 | FR092 | SL092 | FRP092 | SLP092 | |||
2d | 16,0 | 10,6 | 15,4 | FR093 | SL093 | FRP093 | SLP093 | |||
2,5d | 20,0 | 13,5 | 19,4 | FR094 | SL094 | FRP094 | SLP094 | |||
3d | 24,0 | 16,4 | 23,4 | FR095 | SL095 | FRP095 | SLP095 | |||
M8X1,00 | 1d | 8,0 | 6,1 | 9,85-10,1 | 8,3 | 7,5 | FR101 | SL101 | FRP101 | SLP101 |
1,5d | 12,0 | 9,5 | 11,5 | FR102 | SL102 | FRP102 | SLP102 | |||
2d | 16,0 | 12,9 | 15,5 | FR103 | SL103 | FRP103 | SLP103 | |||
2,5d | 20,0 | 16,5 | 19,5 | FR104 | SL104 | FRP104 | SLP104 | |||
3d | 24,0 | 19,9 | 23,5 | FR105 | SL105 | FRP105 | SLP105 | |||
M9X1,25 | 1d | 9,0 | 5,3 | 10,85-11,1 | 9,4 | 8,4 | FR111 | SL111 | FRP111 | SLP111 |
1,5d | 13,5 | 8,6 | 12,9 | FR112 | SL112 | FRP112 | SLP112 | |||
2d | 18,0 | 11,9 | 17,4 | FR113 | SL113 | FRP113 | SLP113 | |||
2,5d | 22,5 | 15,3 | 21,9 | FR114 | SL114 | FRP114 | SLP114 | |||
3d | 27,0 | 18,1 | 26,4 | FR115 | SL115 | FRP115 | SLP115 | |||
M10X1,50 | 1d | 10,0 | 5,0 | 12,1-12,5 | 10,50 | 9,2 | FR121 | SL121 | FRP121 | SLP121 |
1,5d | 15,0 | 8,1 | 14,2 | FR122 | SL122 | FRP122 | SLP122 | |||
2d | 20,0 | 11,2 | 19,2 | FR123 | SL123 | FRP123 | SLP123 | |||
2,5d | 25,0 | 14,2 | 24,20 | FR124 | SL124 | FRP124 | SLP124 | |||
3d | 30,0 | 17,2 | 29,20 | FR125 | SL125 | FRP125 | SLP125 | |||
M10X1,00 | 1d | 10,0 | 7,6 | 12,1-12,5 | 10,25 | 9,50 | FR131 | SL131 | FRP131 | SLP131 |
1,5d | 15,0 | 12,1 | 14,50 | FR132 | SL132 | FRP132 | SLP132 | |||
2d | 20,0 | 16,3 | 19,50 | FR133 | SL133 | FRP133 | SLP133 | |||
2,5d | 25,0 | 20,7 | 24,50 | FR134 | SL134 | FRP134 | SLP134 | |||
3d | 30,0 | 25,0 | 29,50 | FR135 | SL135 | FRP135 | SLP135 | |||
M10X1,25 | 1d | 10,0 | 6,0 | 12,1-12,5 | 10,40 | 9,40 | FR141 | SL141 | FRP141 | SLP141 |
1,5d | 15,0 | 9,7 | 14,40 | FR142 | SL142 | FRP142 | SLP142 | |||
2d | 20,0 | 13,1 | 19,40 | FR143 | SL143 | FRP143 | SLP143 | |||
2,5d | 25,0 | 16,9 | 24,40 | FR144 | SL144 | FRP144 | SLP144 | |||
3d | 30,0 | 20,1 | 29,40 | FR145 | SL145 | FRP145 | SLP145 | |||
M11X1,50 | 1d | 11,0 | 5,6 | 13,1-13,5 | 11,50 | 10,20 | FR151 | SL151 | FRP151 | SLP151 |
1,5d | 16,5 | 9,0 | 15,70 | FR152 | SL152 | FRP152 | SLP152 | |||
2d | 22,0 | 12,3 | 21,20 | FR153 | SL153 | FRP153 | SLP153 | |||
2,5d | 27,5 | 15,7 | 26,70 | FR154 | SL154 | FRP154 | SLP154 | |||
3d | 33,0 | 19,1 | 32,20 | FR155 | SL155 | FRP155 | SLP155 | |||
M12X1,75 | 1d | 12,0 | 5,2 | 14,4-14,8 | 12,50 | 11,10 | FR161 | SL161 | FRP161 | SLP161 |
1,5d | 18,0 | 8,4 | 17,10 | FR162 | SL162 | FRP162 | SLP162 | |||
2d | 24,0 | 11,7 | 23,10 | FR163 | SL163 | FRP163 | SLP163 | |||
2,5d | 30,0 | 14,7 | 29,10 | FR164 | SL164 | FRP164 | SLP164 | |||
3d | 36,0 | 18,0 | 35,10 | FR165 | SL165 | FRP165 | SLP165 | |||
M12X1,00 | 1d | 12,0 | 9,3 | 14,4-14,8 | 12,25 | 11,50 | FR171 | SL171 | FRP171 | SLP171 |
1,5d | 18,0 | 14,5 | 17,50 | FR172 | SL172 | FRP172 | SLP172 | |||
2d | 24,0 | 19,5 | 23,50 | FR173 | SL173 | FRP173 | SLP173 | |||
2,5d | 30,0 | 24,8 | 29,50 | FR174 | SL174 | FRP174 | SLP174 | |||
3d | 36,0 | 30,0 | 35,50 | FR175 | SL175 | FRP175 | SLP175 | |||
M12X1,25 | 1d | 12,0 | 7,4 | 14,4-14,8 | 12,25 | 11,40 | FR181 | SL181 | FRP181 | SLP181 |
1,5d | 18,0 | 11,6 | 17,40 | FR182 | SL182 | FRP182 | SLP182 | |||
2d | 24,0 | 15,9 | 23,40 | FR183 | SL183 | FRP183 | SLP183 | |||
2,5d | 30,0 | 20,0 | 29,40 | FR184 | SL184 | FRP184 | SLP184 | |||
3d | 36,0 | 24,3 | 35,40 | FR185 | SL185 | FRP185 | SLP185 | |||
M12X1,5 | 1d | 12,0 | 6,2 | 14,4-14,8 | 12,50 | 11,2 | FR191 | SL191 | FRP191 | SLP191 |
1,5d | 18,0 | 9,8 | 17,2 | FR192 | SL192 | FRP192 | SLP192 | |||
2d | 24,0 | 13,5 | 23,2 | FR193 | SL193 | FRP193 | SLP193 | |||
2,5d | 30,0 | 17,1 | 29,2 | FR194 | SL194 | FRP194 | SLP194 | |||
3d | 36,0 | 20,8 | 35,2 | FR195 | SL195 | FRP195 | SLP195 | |||
M14X2,0 | 1d | 14,0 | 5,6 | 16,8-17,2 | 14,5 | 13,0 | FR201 | SL201 | FRP201 | SLP201 |
1,5d | 21,0 | 8,8 | 20,0 | FR202 | SL202 | FRP202 | SLP202 | |||
2d | 28,0 | 12,0 | 27,0 | FR203 | SL203 | FRP203 | SLP203 | |||
2,5d | 35,0 | 15,2 | 34,0 | FR204 | SL204 | FRP204 | SLP204 | |||
M14X1,0 | 1d | 14,0 | 11,2 | 16,8-17,2 | 14,25 | 13,5 | FR211 | SL211 | FRP211 | SLP211 |
1,5d | 21,0 | 17,2 | 20,5 | FR212 | SL212 | FRP212 | SLP212 | |||
2d | 28,0 | 23,2 | 27,5 | FR213 | SL213 | FRP213 | SLP213 | |||
2,5d | 35,0 | 29,2 | 34,5 | FR214 | SL214 | FRP214 | SLP214 | |||
M14X1,25 | Свечная резьба | 8,4 | 4,6 | 16,8-17,2 | 14,25 | 7,8 | FR221 | SL221 | FRP221 | SLP221 |
12,4 | 7,4 | 11,8 | FR222 | SL222 | FRP222 | SLP222 | ||||
14,4 | 9,1 | 13,8 | FR223 | SL223 | FRP223 | SLP223 | ||||
16,4 | 10,2 | 18,8 | FR224 | SL224 | FRP224 | SLP224 | ||||
M14X1,5 | 1d | 14,0 | 7,4 | 16,8-17,2 | 14,5 | 13,2 | FR231 | SL231 | FRP231 | SLP231 |
1,5d | 21,0 | 11,6 | 20,2 | FR232 | SL232 | FRP232 | SLP232 | |||
2d | 28,0 | 15,7 | 27,2 | FR233 | SL233 | FRP233 | SLP233 | |||
2,5d | 35,0 | 19,9 | 34,2 | FR234 | SL234 | FRP234 | SLP234 | |||
M16X2,0 | 1d | 16,0 | 6,5 | 19,0-19,4 | 16,5 | 15,0 | FR241 | SL241 | FRP241 | SLP241 |
1,5d | 24,0 | 10,1 | 23,0 | FR242 | SL242 | FRP242 | SLP242 | |||
2d | 32,0 | 13,8 | 31,0 | FR243 | SL243 | FRP243 | SLP243 | |||
2,5d | 40,0 | 17,5 | 39,0 | FR244 | SL244 | FRP244 | SLP244 | |||
M16X1,5 | 1d | 16,0 | 8,7 | 19,0-19,4 | 16,5 | 15,2 | FR251 | SL251 | FRP251 | SLP251 |
1,5d | 24,0 | 13,4 | 23,2 | FR252 | SL252 | FRP252 | SLP252 | |||
2d | 32,0 | 18,1 | 31,2 | FR253 | SL253 | FRP253 | SLP253 | |||
2,5d | 40,0 | 22,9 | 39,2 | FR254 | SL254 | FRP254 | SLP254 | |||
0,5d | 9,0 | 2,3 | 7,7 | FR261 | SL261 | FRP261 | SLP261 | |||
0,75d | 13,5 | 3,8 | 12,2 | FR262 | SL262 | FRP262 | SLP262 | |||
M18X2,5 | 1d | 18,0 | 5,6 | 21,5-22,0 | 18,75 | 16,7 | FR263 | SL263 | FRP263 | SLP263 |
1,5d | 27,0 | 9,0 | 25,7 | FR264 | SL264 | FRP264 | SLP264 | |||
2d | 36,0 | 12,3 | 34,7 | FR265 | SL265 | FRP265 | SLP265 | |||
0,5d | 9,0 | 4,2 | 8,2 | FR271 | SL271 | FRP271 | SLP271 | |||
0,75d | 13,5 | 7,0 | 12,7 | FR272 | SL272 | FRP272 | SLP272 | |||
M18X1,5 | 1d | 18,0 | 9,5 | 21,5-22,0 | 18,50 | 17,2 | FR273 | SL273 | FRP273 | SLP273 |
1,5d | 27,0 | 14,9 | 26,2 | FR274 | SL274 | FRP274 | SLP274 | |||
2d | 36,0 | 20,2 | 35,2 | FR275 | SL275 | FRP275 | SLP275 | |||
0,5d | 9,0 | 3,1 | 8,0 | FR281 | SL281 | FRP281 | SLP281 | |||
0,75d | 13,5 | 5,1 | 12,5 | FR282 | SL282 | FRP282 | SLP282 | |||
M18X2,0 | 1d | 18,0 | 7,1 | 21,5-22,0 | 18,50 | 17,0 | FR283 | SL283 | FRP283 | SLP283 |
1,5d | 27,0 | 11,2 | 26,0 | FR284 | SL284 | FRP284 | SLP284 | |||
2d | 36,0 | 15,1 | 35,0 | FR285 | SL285 | FRP285 | SLP285 | |||
0,5d | 10,0 | 2,7 | 8,7 | FR291 | SL291 | FRP291 | SLP291 | |||
0,75d | 15,0 | 4,5 | 13,7 | FR292 | SL292 | FRP292 | SLP292 | |||
M20X2,5 | 1d | 20,0 | 6,3 | 27,3-24,2 | 20,75 | 18,7 | FR293 | SL293 | FRP293 | SLP293 |
1,5d | 30,0 | 10,0 | 28,7 | FR294 | SL294 | FRP294 | SLP294 | |||
2d | 40,0 | 13,7 | 38,7 | FR295 | SL295 | FRP295 | SLP295 | |||
0,5d | 10,0 | 4,9 | 9,2 | FR301 | SL301 | FRP301 | SLP301 | |||
0,75d | 15,0 | 7,9 | 14,2 | FR302 | SL302 | FRP302 | SLP302 | |||
M20X1,5 | 1d | 20,0 | 10,7 | 27,3-24,2 | 20,50 | 19,2 | FR303 | SL303 | FRP303 | SLP303 |
1,5d | 30,0 | 16,7 | 29,2 | FR304 | SL304 | FRP304 | SLP304 | |||
2d | 40,0 | 22,4 | 39,2 | FR305 | SL305 | FRP305 | SLP305 | |||
0,5d | 10,0 | 3,5 | 9,0 | FR311 | SL311 | FRP311 | SLP311 | |||
0,75d | 15,0 | 5,8 | 14,0 | FR312 | SL312 | FRP312 | SLP312 | |||
M20X2,0 | 1d | 20,0 | 8,0 | 27,3-24,2 | 20,50 | 19,0 | FR313 | SL313 | FRP313 | SLP313 |
1,5d | 30,0 | 12,5 | 29,0 | FR314 | SL314 | FRP314 | SLP314 | |||
2d | 40,0 | 16,8 | 39,0 | FR315 | SL315 | FRP315 | SLP315 | |||
0,5d | 11,0 | 3,0 | 9,7 | FR321 | SL321 | FRP321 | SLP321 | |||
0,75d | 16,5 | 5,0 | 15,2 | FR322 | SL322 | FRP322 | SLP322 | |||
M22X2,5 | 1d | 22,0 | 6,9 | 26,3-26,8 | 22,75 | 20,7 | FR323 | SL323 | FRP323 | SLP323 |
1,5d | 33,0 | 10,9 | 31,7 | FR324 | SL324 | FRP324 | SLP324 | |||
2d | 44,0 | 15,0 | 42,7 | FR325 | SL325 | FRP325 | SLP325 | |||
0,5d | 11,0 | 5,5 | 10,2 | FR331 | SL331 | FRP331 | SLP331 | |||
0,75d | 16,5 | 8,6 | 15,7 | FR332 | SL332 | FRP332 | SLP332 | |||
M22X1,5 | 1d | 22,0 | 11,7 | 26,3-26,8 | 22,50 | 21,2 | FR333 | SL333 | FRP333 | SLP333 |
1,5d | 33,0 | 18,1 | 32,2 | FR334 | SL334 | FRP334 | SLP334 | |||
2d | 44,0 | 24,5 | 43,2 | FR335 | SL335 | FRP335 | SLP335 | |||
0,5d | 11,0 | 3,9 | 10,0 | FR341 | SL341 | FRP341 | SLP341 | |||
0,75d | 16,5 | 6,4 | 15,5 | FR342 | SL342 | FRP342 | SLP342 | |||
M22X2,0 | 1d | 22,0 | 8,7 | 26,3-26,8 | 22,50 | 21,0 | FR343 | SL343 | FRP343 | SLP343 |
1,5d | 33,0 | 13,6 | 32,0 | FR344 | SL344 | FRP344 | SLP344 | |||
2d | 44,0 | 184 | 43,0 | FR345 | SL345 | FRP345 | SLP345 | |||
0,5d | 12,0 | 2,6 | 10,5 | FR351 | SL351 | FRP351 | SLP351 | |||
0,75d | 18,0 | 4,5 | 16,5 | FR352 | SL352 | FRP352 | SLP352 | |||
M24X3,0 | 1d | 24,0 | 6,2 | 28,6-29,1 | 24,75 | 22,5 | FR353 | SL353 | FRP353 | SLP353 |
1,5d | 36,0 | 10,0 | 34,5 | FR354 | SL354 | FRP354 | SLP354 | |||
2d | 48,0 | 14,0 | 46,5 | FR355 | SL355 | FRP355 | SLP355 | |||
0,5d | 12,0 | 6,0 | 11,2 | FR361 | SL361 | FRP361 | SLP361 | |||
0,75d | 18,0 | 9,5 | 17,2 | FR362 | SL362 | FRP362 | SLP362 | |||
M24X1,5 | 1d | 24,0 | 12,9 | 28,6-29,1 | 24,50 | 23,2 | FR363 | SL363 | FRP363 | SLP363 |
1,5d | 36,0 | 19,8 | 35,2 | FR364 | SL364 | FRP364 | SLP364 | |||
2d | 48,0 | 26,7 | 47,2 | FR365 | SL365 | FRP365 | SLP365 | |||
0,5d | 12,0 | 4,3 | 11,0 | FR371 | SL371 | FRP371 | SLP371 | |||
0,75d | 18,0 | 7,0 | 17,0 | FR372 | SL372 | FRP372 | SLP372 | |||
M24X2,0 | 1d | 24,0 | 9,6 | 28,6-29,1 | 24,50 | 23,0 | FR373 | SL373 | FRP373 | SLP373 |
1,5d | 36,0 | 15,0 | 35,0 | FR374 | SL374 | FRP374 | SLP374 | |||
2d | 48,0 | 20,2 | 47,0 | FR375 | SL375 | FRP375 | SLP375 | |||
0,5d | 13,0 | 6,5 | 12,2 | FR381 | SL381 | FRP381 | SLP381 | |||
0,75d | 19,5 | 10,3 | 18,7 | FR382 | SL382 | FRP382 | SLP382 | |||
M26X1,5 | 1d | 26,0 | 14,0 | 31,0-31,5 | 26,5 | 25,2 | FR383 | SL383 | FRP383 | SLP383 |
1,5d | 39,0 | 21,6 | 38,2 | FR384 | SL384 | FRP384 | SLP384 | |||
2d | 52,0 | 29,1 | 51,2 | FR385 | SL385 | FRP385 | SLP385 | |||
0,5d | 13,5 | 3,2 | 12,0 | FR391 | SL391 | FRP391 | SLP391 | |||
0,75d | 20,3 | 5,0 | 18,8 | FR392 | SL392 | FRP392 | SLP392 | |||
M27X3,0 | 1d | 27,0 | 7,1 | 32,2-32,7 | 27,75 | 25,5 | FR393 | SL393 | FRP393 | SLP393 |
1,5d | 40,5 | 11,4 | 39,0 | FR394 | SL394 | FRP394 | SLP394 | |||
2d | 54,0 | 15,4 | 52,5 | FR395 | SL395 | FRP395 | SLP395 | |||
0,5d | 13,5 | 6,7 | 12,7 | FR401 | SL401 | FRP401 | SLP401 | |||
0,75d | 20,3 | 10,7 | 19,5 | FR402 | SL402 | FRP402 | SLP402 | |||
M27X1,5 | 1d | 27,0 | 14,6 | 32,2-32,7 | 27,50 | 26,2 | FR403 | SL403 | FRP403 | SLP403 |
1,5d | 40,5 | 22,6 | 39,7 | FR404 | SL404 | FRP404 | SLP404 | |||
2d | 54,0 | 30,0 | 53,2 | FR405 | SL405 | FRP405 | SLP405 | |||
0,5d | 13,5 | 5,1 | 12,5 | FR411 | SL411 | FRP411 | SLP411 | |||
0,75d | 20,3 | 7,9 | 19,3 | FR412 | SL412 | FRP412 | SLP412 | |||
M27X2,0 | 1d | 27,0 | 10,8 | 32,2-32,7 | 27,50 | 26,0 | FR413 | SL413 | FRP413 | SLP413 |
1,5d | 40,5 | 16,8 | 39,5 | FR414 | SL414 | FRP414 | SLP414 | |||
2d | 54,0 | 22,6 | 53,0 | FR415 | SL415 | FRP415 | SLP415 | |||
0,5d | 14,0 | 7,1 | 13,2 | FR421 | SL421 | FRP421 | SLP421 | |||
0,75d | 21,0 | 11,1 | 20,2 | FR422 | SL422 | FRP422 | SLP422 | |||
M28X1,5 | 1d | 28,0 | 15,2 | 33,1-33,6 | 28,50 | 27,2 | FR423 | SL423 | FRP423 | SLP423 |
1,5d | 42,0 | 23,3 | 41,2 | FR424 | SL424 | FRP424 | SLP424 | |||
2d | 56,0 | 31,4 | 55,2 | FR425 | SL425 | FRP425 | SLP425 | |||
0,5d | 15,0 | 3,0 | 13,2 | FR431 | SL431 | FRP431 | SLP431 | |||
0,75d | 22,5 | 4,9 | 20,7 | FR432 | SL432 | FRP432 | SLP432 | |||
M30X3,5 | 1d | 30,0 | 7,0 | 35,2-35,7 | 31,00 | 28,2 | FR433 | SL433 | FRP433 | SLP433 |
1,5d | 45,0 | 11,0 | 43,2 | FR434 | SL434 | FRP434 | SLP434 | |||
2d | 60,0 | 14,9 | 58,2 | FR435 | SL435 | FRP435 | SLP435 | |||
0,5d | 15,0 | 7,8 | 14,2 | FR441 | SL441 | FRP441 | SLP441 | |||
0,75d | 22,5 | 12,2 | 21,7 | FR442 | SL442 | FRP442 | SLP442 | |||
M30X1,5 | 1d | 30,0 | 16,5 | 35,2-35,7 | 30,50 | 29,2 | FR443 | SL443 | FRP443 | SLP443 |
1,5d | 45,0 | 25,3 | 44,2 | FR444 | SL444 | FRP444 | SLP444 | |||
2d | 60,0 | 34,0 | 59,2 | FR445 | SL445 | FRP445 | SLP445 | |||
0,5d | 15,0 | 5,7 | 14,0 | FR451 | SL451 | FRP451 | SLP451 | |||
0,75d | 22,5 | 9,0 | 21,5 | FR452 | SL452 | FRP452 | SLP452 | |||
M30X2,0 | 1d | 30,0 | 12,3 | 35,2-35,7 | 30,50 | 29,0 | FR453 | SL453 | FRP453 | SLP453 |
1,5d | 45,0 | 19,0 | 44,0 | FR454 | SL454 | FRP454 | SLP454 | |||
2d | 60,0 | 25,5 | 59,0 | FR455 | SL455 | FRP455 | SLP455 | |||
0,5d | 16,5 | 3,4 | 14,7 | FR461 | SL461 | FRP461 | SLP461 | |||
0,75d | 24,8 | 5,6 | 23,0 | FR462 | SL462 | FRP462 | SLP462 | |||
M33X3,5 | 1d | 33,0 | 7,8 | 38,3-38,8 | 34,00 | 31,2 | FR463 | SL463 | FRP463 | SLP463 |
1,5d | 49,5 | 12,2 | 47,7 | FR464 | SL464 | FRP464 | SLP464 | |||
2d | 66,0 | 16,5 | 64,2 | FR465 | SL465 | FRP465 | SLP465 | |||
0,5d | 16,5 | 6,4 | 15,5 | FR471 | SL471 | FRP471 | SLP471 | |||
0,75d | 24,8 | 10,01 | 23,8 | FR472 | SL472 | FRP472 | SLP472 | |||
M33X2,0 | 1d | 33,0 | 13,7 | 38,3-38,8 | 33,50 | 32,0 | FR473 | SL473 | FRP473 | SLP473 |
1,5d | 49,5 | 21,2 | 48,5 | FR474 | SL474 | FRP474 | SLP474 | |||
2d | 66,0 | 28,4 | 65,0 | FR475 | SL475 | FRP475 | SLP475 | |||
0,5d | 18,0 | 3,2 | 16,0 | FR481 | SL481 | FRP481 | SLP481 | |||
0,75d | 27,0 | 5,0 | 25,0 | FR482 | SL482 | FRP482 | SLP482 | |||
M36X4,0 | 1d | 36,0 | 7,0 | 41,2-42,6 | 37,00 | 34,0 | FR483 | SL483 | FRP483 | SLP483 |
1,5d | 54,0 | 11,1 | 52,0 | FR484 | SL484 | FRP484 | SLP484 | |||
2d | 72,0 | 15,2 | 70,0 | FR485 | SL485 | FRP485 | SLP485 | |||
0,5d | 18,0 | 9,5 | 17,2 | FR491 | SL491 | FRP491 | SLP491 | |||
0,75d | 27,0 | 14,7 | 26,2 | FR492 | SL492 | FRP492 | SLP492 | |||
M36X1,5 | 1d | 36,0 | 19,9 | 41,2-42,6 | 36,50 | 35,2 | FR493 | SL493 | FRP493 | SLP493 |
1,5d | 54,0 | 30,5 | 53,2 | FR494 | SL494 | FRP494 | SLP494 | |||
2d | 72,0 | 41,0 | 71,2 | FR495 | SL495 | FRP495 | SLP495 | |||
0,5d | 18,0 | 6,8 | 17,0 | FR501 | SL501 | FRP501 | SLP501 | |||
0,75d | 27,0 | 10,3 | 26,0 | FR502 | SL502 | FRP502 | SLP502 | |||
M36X2,0 | 1d | 36,0 | 14,1 | 41,2-42,6 | 36,50 | 35,0 | FR503 | SL503 | FRP503 | SLP503 |
1,5d | 54,0 | 21,9 | 53,0 | FR504 | SL504 | FRP504 | SLP504 | |||
2d | 72,0 | 31,1 | 71,0 | FR505 | SL505 | FRP505 | SLP505 | |||
0,5d | 18,0 | 4,4 | 16,5 | FR511 | SL511 | FRP511 | SLP511 | |||
0,75d | 27,0 | 7,2 | 25,5 | FR512 | SL512 | FRP512 | SLP512 | |||
M36X3,0 | 1d | 36,0 | 9,9 | 42,1-42,6 | 37,00 | 34,5 | FR513 | SL513 | FRP513 | SLP513 |
1,5d | 54,0 | 15,3 | 52,5 | FR514 | SL514 | FRP514 | SLP514 | |||
2d | 72,0 | 20,5 | 70,5 | FR515 | SL515 | FRP515 | SLP515 | |||
0,75d | 29,3 | 5,5 | 23,4 | FR521 | SL521 | FRP521 | SLP521 | |||
M39X4,0 | 1d | 39,0 | 7,7 | 45,1-45,6 | 40,00 | 33,1 | FR522 | SL522 | FRP522 | SLP522 |
1,25d | 48,8 | 9,9 | 42,9 | FR523 | SL523 | FRP523 | SLP523 | |||
1,5d | 58,5 | 12,3 | 52,6 | FR524 | SL524 | FRP524 | SLP524 | |||
2d | 78,0 | 16,6 | 72,1 | FR525 | SL525 | FRP525 | SLP525 | |||
0,5d | 19,5 | 7,5 | 16,6 | FR531 | SL531 | FRP531 | SLP531 | |||
0,75d | 29,3 | 11,9 | 26,3 | FR532 | SL532 | FRP532 | SLP532 | |||
M39X2,0 | 1d | 39,0 | 16,3 | 45,1-45,6 | 39,50 | 36,1 | FR533 | SL533 | FRP533 | SLP533 |
1,25d | 48,8 | 20,6 | 45,8 | FR534 | SL534 | FRP534 | SLP534 | |||
1,5d | 58,5 | 25,0 | 55,6 | FR535 | SL535 | FRP535 | SLP535 | |||
0,5d | 19,5 | 4,9 | 15,1 | FR541 | SL541 | FRP541 | SLP541 | |||
0,75d | 29,3 | 7,8 | 24,8 | FR542 | SL542 | FRP542 | SLP542 | |||
M39X3,0 | 1d | 39,0 | 10,8 | 45,1-45,6 | 40,00 | 34,6 | FR543 | SL543 | FRP543 | SLP543 |
1,25d | 48,8 | 13,7 | 44,0 | FR544 | SL544 | FRP544 | SLP544 | |||
1,5d | 58,5 | 16,8 | 54,1 | FR545 | SL545 | FRP545 | SLP545 | |||
0,5d | 21,0 | 3,3 | 18,7 | FR551 | SL551 | FRP551 | SLP551 | |||
0,75d | 35,0 | 6,2 | 32,7 | FR552 | SL552 | FRP552 | SLP552 | |||
M42X4,5 | 1d | 42,0 | 7,3 | 48,5-49,0 | 43,00 | 39,7 | FR553 | SL553 | FRP553 | SLP553 |
1,25d | 52,5 | 9,5 | 50,2 | FR554 | SL554 | FRP554 | SLP554 | |||
1,5d | 63,0 | 11,6 | 60,7 | FR555 | SL555 | FRP555 | SLP555 | |||
2d | 84,0 | 15,6 | 84,7 | FR556 | SL556 | FRP556 | SLP556 |
