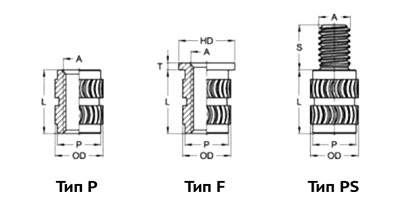

| Артикул - тип P, латунь | | | | | | | | | |
|---|
| HDP2039 | M2 | 3,9 | | 0,51 | 4,8 | 3,5 | 3,1 | 3,2 | 1,4 |
| HDP2558 | M2,5 | 5,8 | | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDP3058 | M3 | 5,8 | | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDP3571 | M3,5 | 7,1 | | 0,74 | 6,4 | 5,2 | 4,7 | 4,8 | 2,1 |
| HDP4081 | M4 | 8,1 | | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,4 |
| HDP5095 | M5 | 9,5 | | 1,07 | 7,9 | 6,9 | 6,3 | 6,4 | 2,8 |
| HDP6013 | M6 | 12,7 | | 1,32 | 9,5 | 8,5 | 7,9 | 8,0 | 3,5 |
| HDP8013 | M8 | 12,7 | | 1,32 | 11,1 | 10,0 | 9,5 | 9,6 | 5,0 |
| Артикул - тип F, латунь | | | | | | | | | |
|---|
| HDF2039 | M2 | 3,9 | | 0,51 | 4,8 | 3,5 | 3,1 | 3,2 | 1,4 |
| HDF2558 | M2,5 | 5,8 | | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDF3058 | M3 | 5,8 | | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDF571 | M3,5 | 7,1 | | 0,74 | 6,4 | 5,2 | 4,7 | 4,8 | 2,1 |
| HDF4081 | M4 | 8,1 | | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,4 |
| HDF5095 | M5 | 9,5 | | 1,07 | 7,9 | 6,9 | 6,3 | 6,4 | 2,8 |
| HDF6013 | M6 | 12,7 | | 1,32 | 9,5 | 8,5 | 7,9 | 8,0 | 3,5 |
| HDF8013 | M8 | 12,7 | | 1,32 | 11,1 | 10,0 | 9,5 | 9,6 | 5,0 |
| Артикул - тип PS, латунь | | | | | | | | | |
|---|
| HDPS2050 | M2 | 3,9 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,51 | 4,8 | 3,5 | 3,1 | 3,2 | 1,4 |
| HDPS2550 | M2,5 | 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDPS3050 | M3 | 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDPS3550 | M3,5 | 7,1 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,74 | 6,4 | 5,2 | 4,7 | 4,8 | 2,1 |
| HDPS4050 | M4 | 8,1 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,4 |
| HDPS5050 | M5 | 9,5 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,07 | 7,9 | 6,9 | 6,3 | 6,4 | 2,8 |
| HDPS6050 | M6 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 9,5 | 8,5 | 7,9 | 8,0 | 3,5 |
| HDPS8050 | M8 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 11,1 | 10,0 | 9,5 | 9,6 | 5,0 |

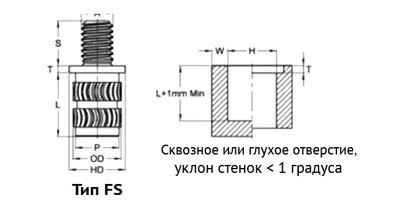

| Артикул - тип FS, латунь | | | | | | | | | |
|---|
| HDFS2050 | M2 | 3,9 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,51 | 4,8 | 3,5 | 3,1 | 3,2 | 1,4 |
| HDFS2550 | M2,5 | 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDFS3050 | M3 | 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,4 | 3,9 | 4,0 | 1,8 |
| HDFS3550 | M3,5 | 7,1 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,74 | 6,4 | 5,2 | 4,7 | 4,8 | 2,1 |
| HDFS4050 | M4 | 8,1 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,4 |
| HDFS5050 | M5 | 9,5 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,07 | 7,9 | 6,9 | 6,3 | 6,4 | 2,8 |
| HDFS6050 | M6 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 9,5 | 8,5 | 7,9 | 8,0 | 3,5 |
| HDFS8050 | M8 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 11,1 | 10,0 | 9,5 | 9,6 | 5,0 |
